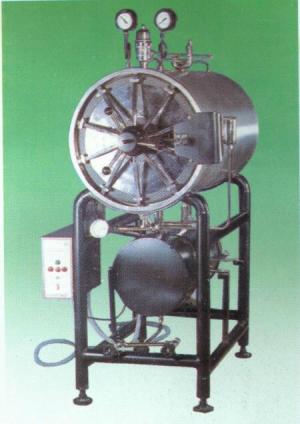

SSU-103 Autoclave horizontal (cylindrical)
This is a double walled unit mounted horizontal on a sturdy, heavy mild steel tubular Stan duly painted. Pressure is adjustable from 10 20 psi. Fitted with pressure garage, safety valve and steam release valve. Available with or without boiler. For units fitted with S.S. Boiler, separate valve for infecting the steam into The main chamber and releasing the steam tin atmosphere after use are provided. Hydraulically tested up to 40 psi, Automatic vacuum bread et is provided to break the vacuum in case of formation of vacuum due To steam condensation Inner chamber made OD S.S. And outer of Mild Steel duly painted. Fitted with Automatic Pressure Control Switch and Automatic Low Water Level Cut-Off device. Lid is made of S.S.Plate with radial locking system. Without steam jacket.
DIA X HEIGHT LOAD WITHOUT BOILER WITH BOILER OUTER OF S.S.
Sizes
(a) 250 X 450 m.m. 2.0 KW
(b) 300 X 500 m.m. 3.0 KW
(c) 350 X 550 m.m. 4.0 KW
(d) 400 X 600 m.m. 6.0 KW
