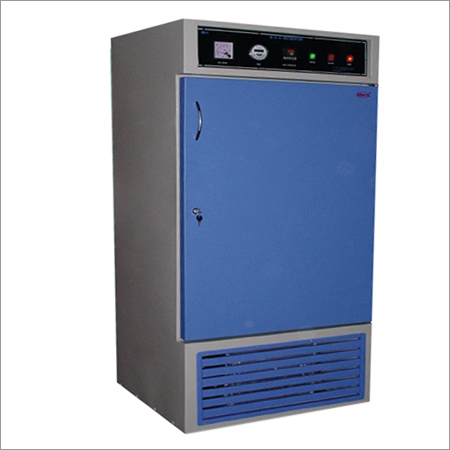

108 B.O.D. INCUBATOR (LOW TEMPERATURE)
(SUPER DELUXE DIGITAL MODEL)
Most versatile for Biochemical oxygen Demand determinations. Cast9or wheel mounted cabinet is double walled with inner chamber of aluminum or S.S. And outer wall of M.S. Sheet duly painted. The gap of 75 m.m. Between the outer and the inner wall is fitted with special grade glass wool to prevent thermal Losses. Triple walled back of the unit is fitted with two air circulation fans for maintaining temperature Niformity throughout t the chamber. Full view inner glass door permits inspection of specimens, without disturbing the same. Lock and key arrangement is provided in the double walled outer door. Unit is fitted With door operated illumination lamp inside the chamber. Refrigeration unit is formed by ISI marked compressor. The front panel is provided with separate indicator lamps for main, heating and incoming voltage. Supplied complete with 3 shelves, cord and plug to work on 220/230 A.C. Supply. Temperature from 5°c to 50°C is controlled by SOLID STATE ELECTRONIC DIGTITAL TEMPERATURE INDICATOR-CUM-CONTROLLER, with an Accuracy of + 0.5°C.
SUPER DELUXE DIGITAL MODEL CAPACITY ALUMINIUM S.S.(304 grade)
Sizes
(a) 455 x 610 x 410 m.m. 4 Cuft
(b) 505 x 500 x 415 m.m. 6.1 Cuft
(c) 570 x 830 x 550 m.m. 10 Cuft
(d) 650 x 875 x 550 m.m. 12 Cuft
(e) 700 x 900 x 650 m.m. 15 Cuft
OPTIONAL ACCESSORIES
(a) Interior illuminaon with 3nos. flourescent tubes (temp. 10° to 50°C)
(b) Automatic timer 0-24 hrs.
(c) Arrangement for incubation of co/Air mixture.
(d) Carbon Dioxide Cylinder (10 ltrs. capacity)
(e) Air compressor for use with above.
(f)Shakin g machine to be fitted inside the chamber
(g) Humidity control arrangment. 55% to 95% + 3% RH
(h) Automatic Voltage Stabilizer 3KVA. (TRIPLE RELAY)
