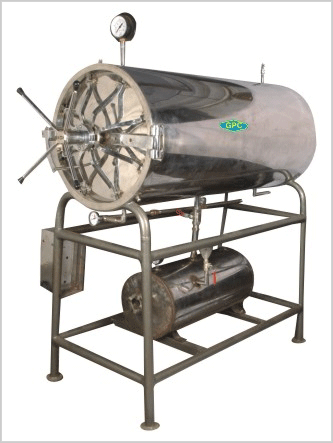

SSU-104 HORIZONTAL HIGH PRESSURE CYLINDRICAL STEAM STERILIZER
(TRIPLE WALLED WITH STEAM JACKET AND SEPERATE BOILER)
The inner chamber, steam jacket, outer chamber and boiler are made of heavy gauge stainless steel with leak proof argon arc welding. The radial locking fid is made of thick S.S. Plate. All units are hydraulically tested up to 40 psi. The space between the outer chamber and steam jacket is fitted with asbestos sheet Or glass wool to minimize thermal losses. Steam boiler is fitted with water level indication, pressure garage, Low water cut-off device and automatic presumer control device. Fitted with a dial thermometer to indicate inner temperature and vacuum breaker to break vacuum in case of formation of cecum due to steam condensation. Two separate valves are provided for evacuating steam from inner chamber and jackets as And when desired. Sterilization Cycle is controlled by Multi port Valve and the unit is fitted with all standard accessories such as Automatic Pressure control Switch and Automatic Low Water Cut-off Device. To work On 440 volts, 3 phase supply.
DIA x DEPTH LOAD WITH OUTER S.S.
Sizes
(a) 400 x 600 m.m. 6.0 KW
(b) 400 x 1100 m.m. 9.0 KW
(c) 500 x 900 m.m. 9.0 KW
