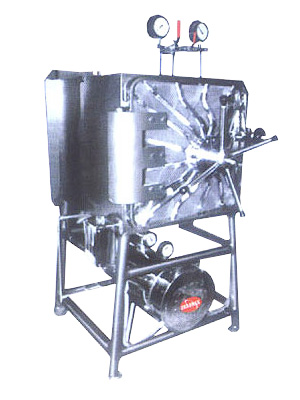

HORIZONTAL HIGH PRESSURE RECTANGULAR STEAM STERILIZER
Inner Chamber is made up of thick non-magnetic steel of 304/316 quality and jacket is made out of rolled steel.Single door made of rolled steel lined with S.S. Sheet has radial locking system. All units are hydraulic calmly tested up to 40 psi. The space between outer cover made of thick rolled steel sheet and the steam jacket is filled with asbestos sheet or glass wool to minimize thermal losses. Boiler is made of thick S.S. Sheet and is located under the sterilizer. It is fitted with water level indication, safety valve, pressure gauge, water inlet and drain valves. Unit is fitted with low-water level cut off device and automatic pressure. Two separate valves are provided for evacuating steam from inner chamber and jacket, as and when Desire. Fitted with a dial thermometer and automatic vacuum breaker. To work on 440 volts, 3Phase, A.C. Supply. Triple Walled with steam Jacket and Separate Baler. Sterilization cycle is controlled by Multi port Valve. The unit is fitted with all standard accessories.
WIDTH x HEIGHT x DEPTH CARRIASGE M.S. TROLLY
(a) 450 x 450 x 900 m.m.
(b) 450 x 600 x 900 m.m
(c) 600 x 600 x 900 m.m
(d) 600 x 600 x 1200 m.m.
(e) 450 x 750 x 1200 m.m
