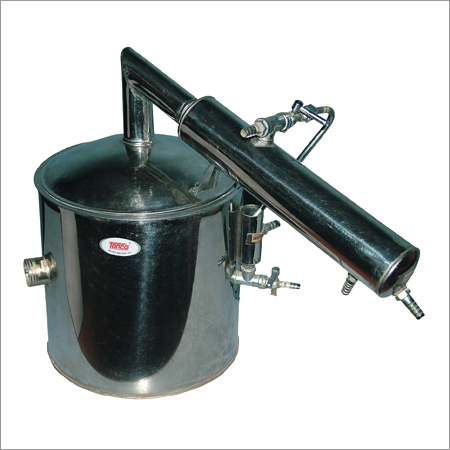

WATER STILL (TABLE PATTERN-BARNSTEAD TYPE) “LABCE” (MADE OF STAINLESS STEEL)
Double walled construction with inner and outer chamber made of S.S.The condenser and top are also made of S.S. Teh raw water is first made of pass around the tubes in the condenser where it gets heated nearly to the boiling point thus economizing the heating energy. The heated water passé to the evaporator through a water level maintaining pipe. Excess water is let out through the drain. To workon 220/230 volts A.C. supply.
CAPACITY LOAD
(a) 2 ltrs/hr. 2.0 KW
(b) 4 ltrs/hr. 3.0 KW
(c) 6 ltrs/hr. 4.0KW
(d) 8 ltrs/hr. 5.0 KW
(e) 20 ltrs/hr. 8.0 KW
